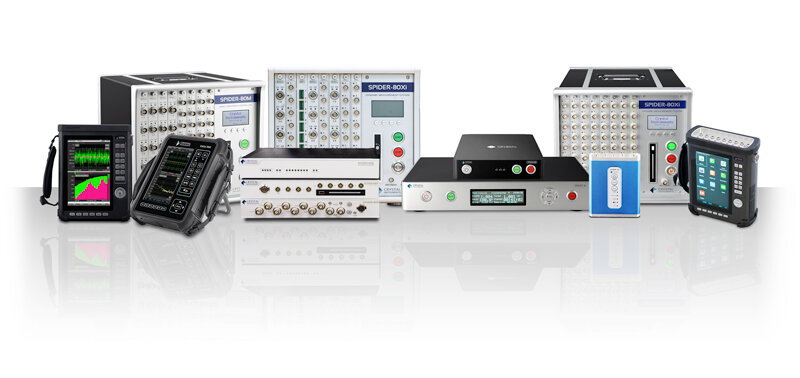

Hardware Platforms
CoCo-80X/90X: Handheld Analyzer
The CoCo-80X Dynamic Signal Analyzer features a 7-inch LCD touchscreen, 2, 4, or 8 input channels, long battery life, and optional Wi-Fi and GPS. The (ISO 11898-1&2) CAN bus digital input allows simultaneous measurement of an automobile’s speed, engine RPM and/or any of the hundreds of performance variables tracked by its Controlled Area Network (CAN).
Spider-20: Ultra Compact Dynamic Signal Analyzer
The Spider-20 is a compact yet powerful dynamic signal analyzer and data recorder with Ethernet. It provides four 24-bit precise high-fidelity input channels, and a unique software-selectable tachometer-input/signal-source output channel. It is PC-independent and features a 6-hour battery life in full operating mode.

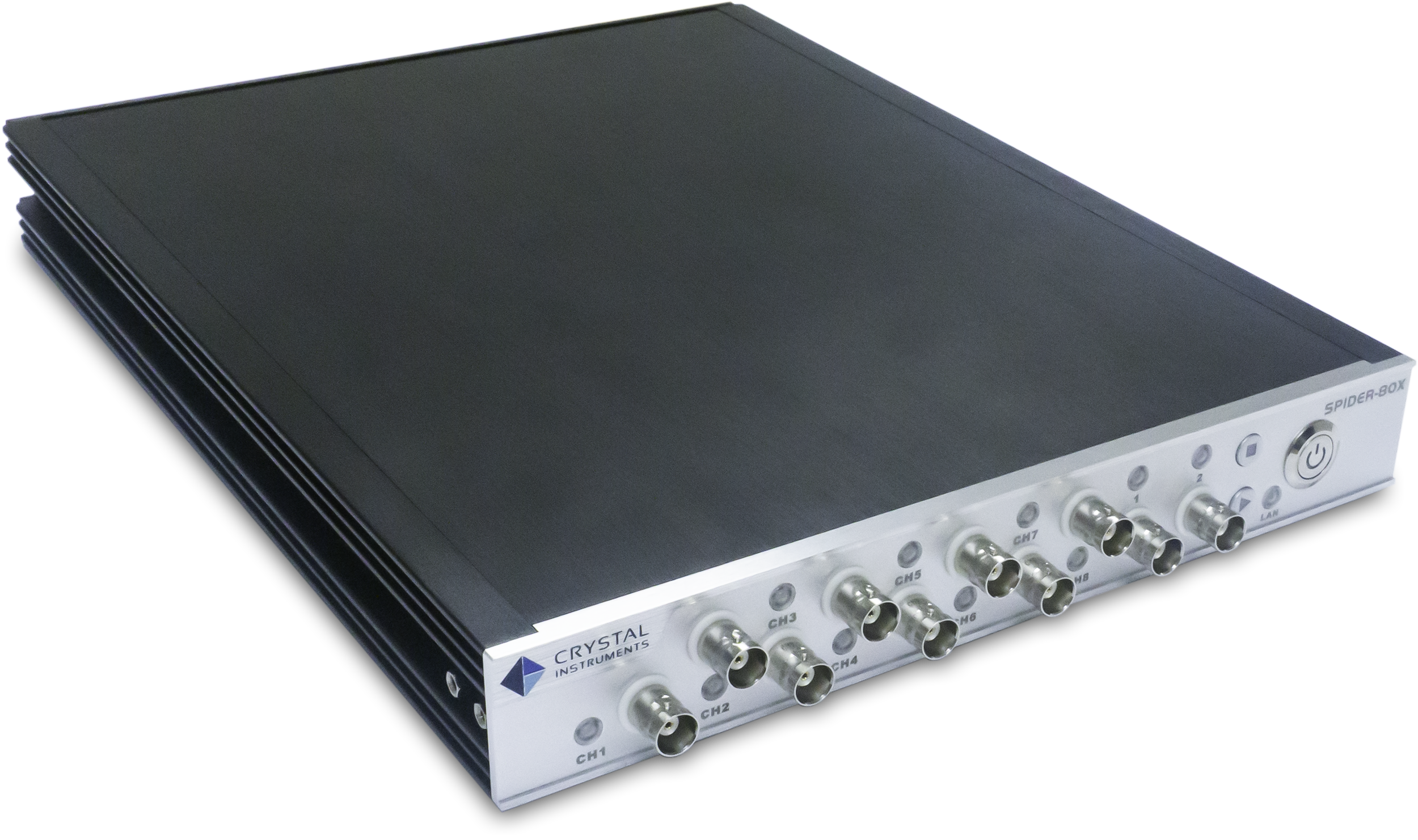

Spider-80Xi/Spider-80X: 512 Channel System
The Spider-80X is designed for applications in three fields: dynamic data acquisition, vibration testing, and machine monitoring. Scale to high channel count dynamic signal analyzer systems with channel configurations from 8 to 512 channels. The Spider-80Xi is a compact version of Spider-80X with an extremely lightweight form factor.
Spider-81/81B: Vibration Test Controller
The Spider-81 vibration test controller is the fourth generation of vibration testing control technology, integrating time-synchronized Ethernet connectivity with embedded DSP technology. Spider-81 front-ends have voltage, charge, TEDS, and IEPE inputs which are adaptable to a variety of measurements, including vibration.
Spider-80M MIMO Vibration Test Controller
The Spider-80M platform is based on the efficient Spider-80Xi architecture and is dedicated to MIMO VCS control and MIMO structural testing applications. Each Spider-80M chassis features 8 outputs capable of carrying out 6-degree of freedom MIMO testing.
General Data Acquisition with Strain Gage
The Spider-80SG is a high precision, general purpose data acquisition device featuring strain gage functionality. With Crystal Instruments’ unique Ethernet based time synchronization technology, multiple Spider-80SG front-ends can be chained together to construct systems up to 512 channels. Works with the Spider-80X in DSA (dynamic signal analysis) or VCS (vibration control system) modes.
Spider-80Ti High Channel Temperature Measurement System
The Spider-80Ti is a front-end from the Spider-80Xi hardware platform that enables temperature measurement. Spider-80Ti supports temperature measurements from Thermocouples and RTD (Resistance Temperature Detector) sensors.
Spider-HUB Industrial Network Switch
The Spider-HUB IEEE 1588 industrial Ethernet switch supports the latest IEEE 1588v2 technology. Time stamping accuracy is guaranteed within 50 nanoseconds.
Spider-NAS Network Attached Storage Device
The Spider-NAS is a dedicated network attached storage solution designed to provide high performance data recording for front-ended Spider modules. Features a solid state hard drive of 250 GB. Records data in NTFS file format.
Spider-80X Machine Condition Monitoring System
The compact Spider-80X combined with EDM Cloud is designed for machine condition monitoring. With EDM Cloud, the test and the test engineer can literally be oceans apart. Applications include machine conditioning monitoring, wind turbine vibration and status monitoring, bridge and railway vibration monitoring, tunnel sound monitoring and more.
CoCo-70X Handheld Vibration Analyzer
The CoCo-70X is Crystal Instruments’ latest handheld vibration analyzer, featuring an improved user interface and redesigned chassis. The CoCo-70X is a four-channel vibration analyzer with an IP-67 rating, designed specifically for the machinery Predictive Maintenance (PdM) community. The CoCo-70X offers powerful processing capabilities and an intuitive user-interface, providing users with an easy-to-use data collection experience. The newly designed chassis is lighter and more ruggedized, making the CoCo-70X a perfect device for route-based measurements.
Ground Recorder System (GRS)
The GRS is a rugged, lightweight, battery powered dynamic data recorder and real-time dynamic signal analyzer with unparalleled performance and accuracy. It is ideal for a wide range of industries that require high grade acoustic and vibration measurements. These industries demand quick, easy, and accurate data recording in addition to real-time processing in the field.
