New Generation Spider Hardware with 175 dB Dynamic Range

Crystal Instruments continues to push the boundaries of precision measurement technology. Our latest release marks a substantial evolution in data acquisition and vibration control performance, with comprehensive enhancements to the Spider-80X, Spider-80Xi, Spider-80Hi, Spider-81, and Spider-81B platforms. This new generation of Spider hardware has seen improved performance in the following areas:

  • Dynamic Range and Noise Floor

  • Total Harmonic Distortion

  • Crosstalk

  • Common Mode Rejection

  • Output Dynamic Range of 145 dB

Specification Details
Input Dynamic Range 175 dBFs
Noise Floor 29.7nV/(√H z) at 1 kHz
Output Dynamic Range 145 dB
Smallest Precision Output Amplitude 500 nV
THD -100 dB at 1 kHz
Crosstalk Better than 120 dB
Common Mode Rejection Better than 120 dB

Dynamic range defines how effectively a system can capture both very small and very large signals without distortion. In essence, it is the ratio between the largest measurable signal and the smallest detectable signal. The Spider hardware is capable of measuring signals as small as 500 nanovolts and as large as 20 volts.

noise floor measurement

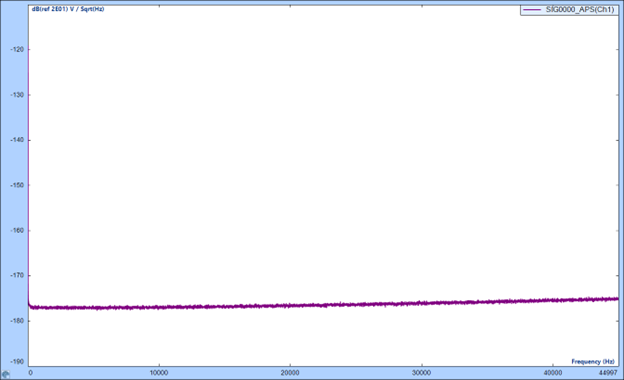

Figure 1. Spider-80Hi input noise floor

Just as a wide input dynamic range allows a DAQ to capture both small and large signals with accuracy, a wide output dynamic range ensures that the controller can reproduce those same signals with equal precision. In vibration control, this capability is essential since an output channel can be used to drive a shaker. It is necessary that this signal is clean and undistorted so that it can match the intended test profile. A controller with a high output dynamic range maintains linearity and prevents distortion across the full range of operation, ensuring stable control, accurate test reproduction, and reliable system performance.

output dynamic range

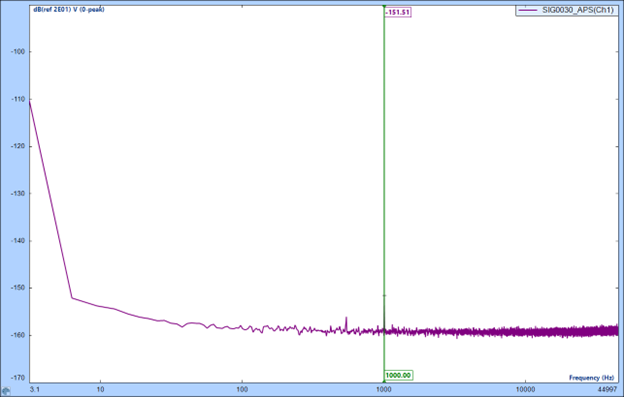

Figure 2. Spider-80X output dynamic range. The output channel is used to generate a ~500 nanovolt signal at 1 kHz.

Total Harmonic Distortion quantifies the harmonic content that is added to a signal by a system. Ideally, when a DAQ measures a pure sine tone, the output should be a pure sine tone, but in real hardware nonlinearities may cause distortion that generates harmonics at multiples of the fundamental frequency. A system with low THD ensures that measured harmonics are real and introduced by the input signal and not by the system.

Total Harmonic Distortion

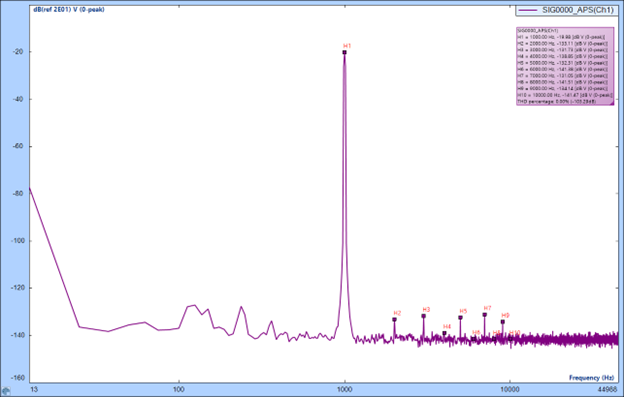

Figure 3. THD with the Spider-80X at 1 kHz.

Crosstalk refers to the unwanted coupling between channels, and it occurs when the signal from one channel unintentionally interferes with another channel. For multi-channel DAQs and vibration controllers, maintaining low cross talk is critical to ensure each channel can accurately measure sensors or actuators.

unwanted coupling between channels

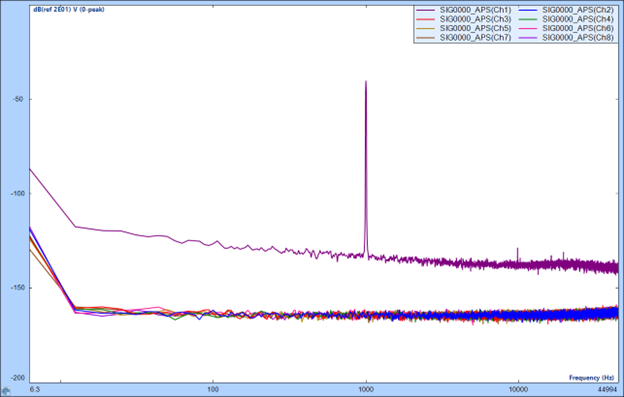

Figure 4. Crosstalk among 8 channels on the Spider-80X

Common Mode Rejection is the ability of a DAQ to reject noise or interference that is present on both the positive and negative inputs of a differential channel. It determines how well a DAQ can extract the true signal from a sensor even in the presence of strong electrical noise. In real-world environments, long cables, ground potential differences, and EMI can induce unwanted voltage on a pair of differential signal lines. A system with high CMMR is able to effectively cancel disturbances that appear on both lines of differential sensors.

With improvements in dynamic range, THD, crosstalk, CMMR, the latest generation of Spider hardware represents a significant leap forward in data acquisition and vibration control technology. These advancements ensure greater signal fidelity, lower noise, and more accurate measurements.
