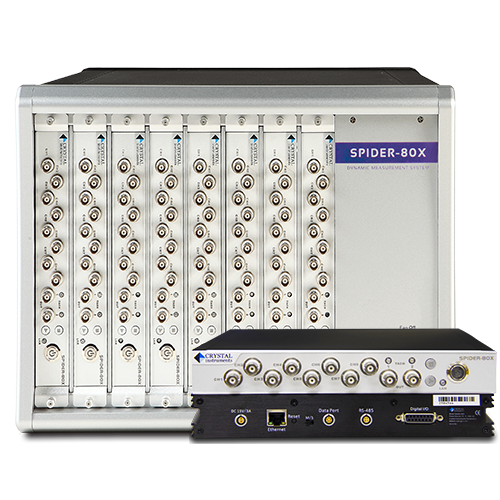

Spider-80X 64 Channel System

(Return to Crystal Instruments Rentals)

Click here to learn more about the  Spider-80X High Channel VCS

Click here to learn more about the Spider-80X High Channel VCS

  • Inputs: 8 BNC connectors per front-end, front-ends are networked to form up to 128 inputs, voltage or IEPE, single-ended or differential, AC or DC coupling, 160 dBFS dynamic range, 24-bit A/D converters, range ±20 volts, up to 102.4 kHz fs per channel

  • Outputs: 2 BNC connectors per front-end, 100 dB dynamic range, 24-bit A/D converters. ±10 volts

  • Channel Phase Match: Better than ±1.0 degree up to 20 kHz among all channels

  • Dimensions: 238.8 x 215.7 x 20 mm, four Spider-80X vibration test controllers fit into one 1U 19 inch rack-mount slot

  • Weight: 1.3 kg per front-end

  • 15 or 30 day rental options

  • Software: full software suite included with rental

  • Accessories: Cables, connecting cords, and charger included. Pelican case included with rental

  • Purchase Orders: To submit a purchase order, contact rentals@go-ci.com or contact Crystal Instruments.
