Spider-30R Ultra-Compact Data Acquisition System

vibration and structural data acquisition
data acquisition system
vibration data acquisition device

Overview

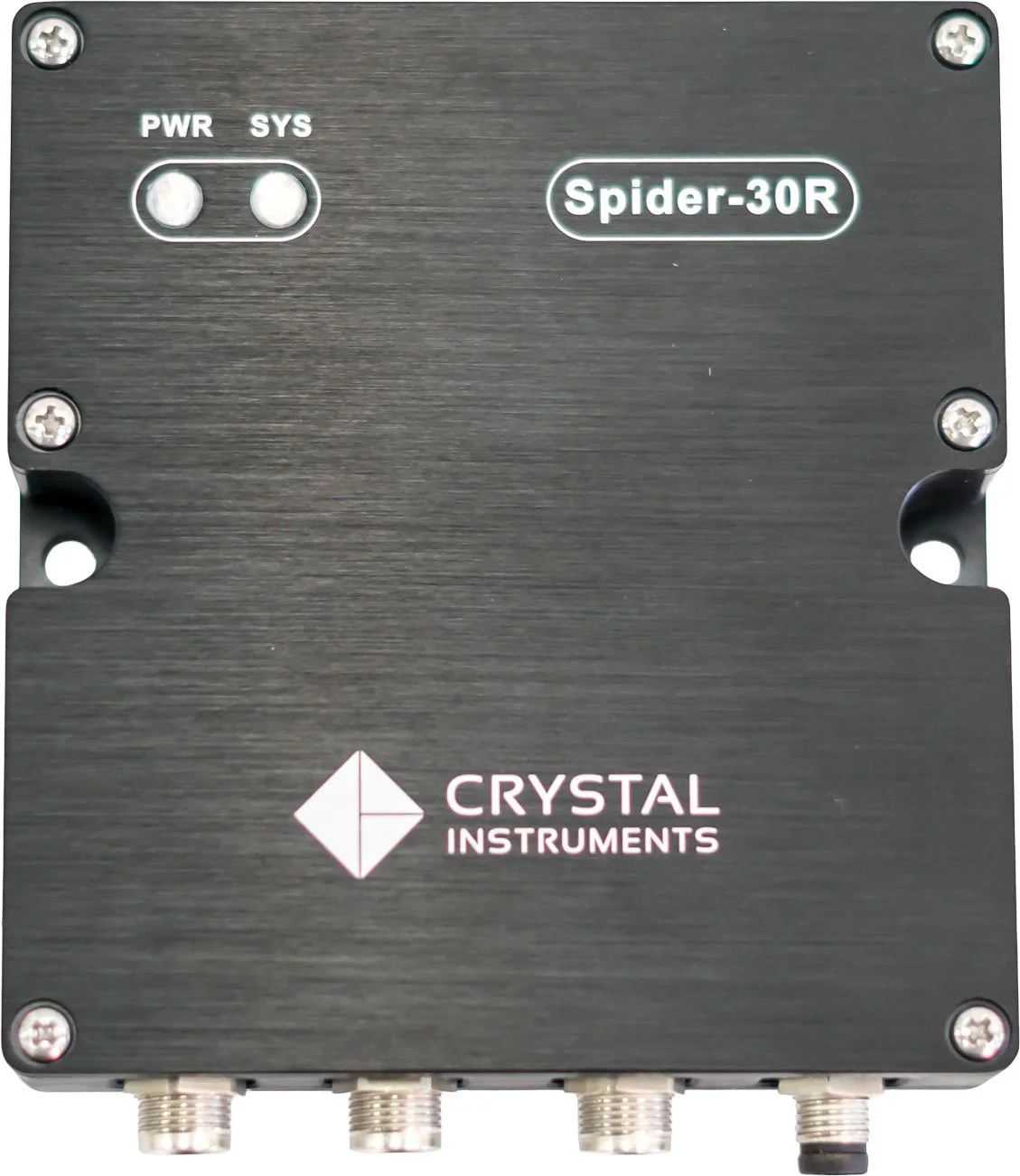

The Spider-30R is an ultra-compact, high-performance data acquisition system designed for vibration and structural measurements in challenging environments. With a rugged aluminum enclosure, robust M-type connectors, and high dynamic range, it delivers laboratory-grade signal quality in a field-ready package.

Key Highlights

  • Ultra-Compact & Lightweight: 110 × 110 × 50 mm, 0.65 lb. Easily mounted on rigs, vehicles, or confined spaces.

  • Six Input Channels: Ideal for two tri-axial IEPE sensors, supporting AC or IEPE coupling with 24-bit resolution.

  • High Dynamic Range: Up to 145 dB, ensuring precision in both low- and high-amplitude signal measurements.

  • Rugged Construction: Shock-tested enclosure rated for up to 50 g; optional Extreme-Shock variant up to 1000 g.

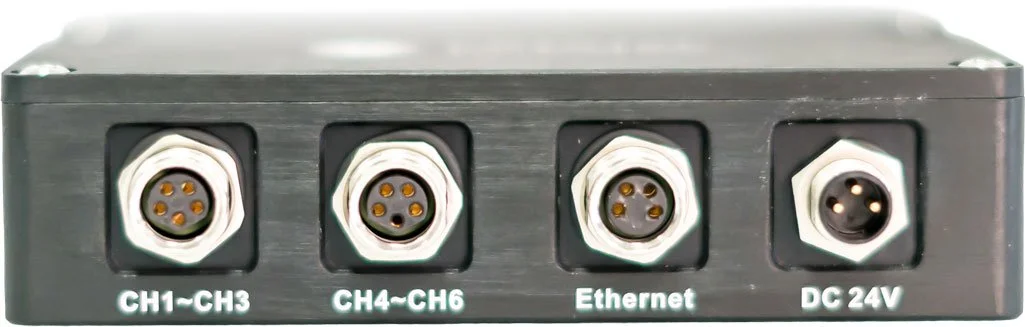

  • Robust M-Type Connectors: Locking, sealed connectors for input, power, and Ethernet.

  • Environmental Tolerance: Operational from −20 °C to +55 °C, resistant to sine, random, and shock vibrations.

Ruggedization Features

  • Sealed M-Type Connectors: Ensure mechanical stability and environmental protection.

  • Shock and Vibration Qualification: Tested for sine, random, and shock vibrations to industry standards.

  • Optional 1000 g Shock Tolerance: Available variant for extreme mechanical environments.

Applications

  • Structural vibration testing

  • Aerospace and automotive field measurements

  • Portable or embedded sensing systems

  • Harsh-environment monitoring

  • Permanent mounted DAQ For Predictive Maintenance

Technical Specifications

Analog Inputs

  • 6 channels, 24-bit sigma-delta ADC

  • AC or IEPE coupling (22.5 V / 4.2 mA)

  • ±10 V input range, 500 kΩ impedance

  • Sampling range: 0.48 Hz – 102.4 kHz

  • Max bandwidth: 45 kHz

  • Digital anti-aliasing with 95 dB attenuation

  • Amplitude match ≤ ±0.05 dB, phase match ≤ 0.15° @ 20 kHz

  • THD: −90 dB @ 1 kHz

Connectivity & Storage

  • M-type input, power, and Ethernet connectors

  • Non-removable microSD (4 GB default, up to 32 GB)

Power & Timing

  • Power consumption: < 6 W

  • Power input: 24 VDC (±10%) / 2.5 A

  • RTC ±3.5 ppm with 10-year backup battery

  • Auto power-on timer support

Environmental & Mechanical

  • Operating temperature: −20 °C to +55 °C

  • Storage temperature: −40 °C to +70 °C

  • Random vibration (op): 0.3 grms, 5–500 Hz

  • Random vibration (non-op): 5 grms, 10–500 Hz

  • Shock (non-op): 50 g 3 ms / 30 g 11 ms / 50 g 50 ms

  • Dimensions: 110 × 110 × 50 mm

  • Weight: 0.65 lb

Measurement Filters

  • Analog HPF (−3 dB @ 0.35 Hz)

  • Analog AA filter (−3 dB @ 500 kHz)

  • Digital high-, low-, and band-pass options
