MULTI-RESOLUTION FUNCTION FOR RANDOM VIBRATION CONTROL

An Innovative Approach to Improve the Control Accuracy in Low Frequency

Many characteristics of mechanical systems are better described logarithmically in the frequency domain. In vibration control tests, uniform frequency resolution that FFT offers is not ideal because the resolution is enough in the high-frequency range may be not enough in the low frequency and the control performance is impacted.

For example, many popular Random test standards require a profile up to 2kHz and high resolution in the low-frequency range. To meet the requirement, high resolution (large block size) that is not needed in high frequency must be used. Therefore, loop time and storage space increase and spectrum refresh rate decrease in the high-frequency range.

To increase the control performance in the low-frequency range and maintain reasonable loop time, different resolutions should be applied to the low and high-frequency range in the entire control process.

EDM provides the multi-resolution feature that applies the selected resolution in the high-frequency range and 8 times of the resolution in the low-frequency range. The cutoff frequency, which divides the low and high-frequency range, is calculated by the software. A few adjacent frequencies can also be selected by the user to avoid system resonance or anti-resonance.

CONTROL ALGORITHMS

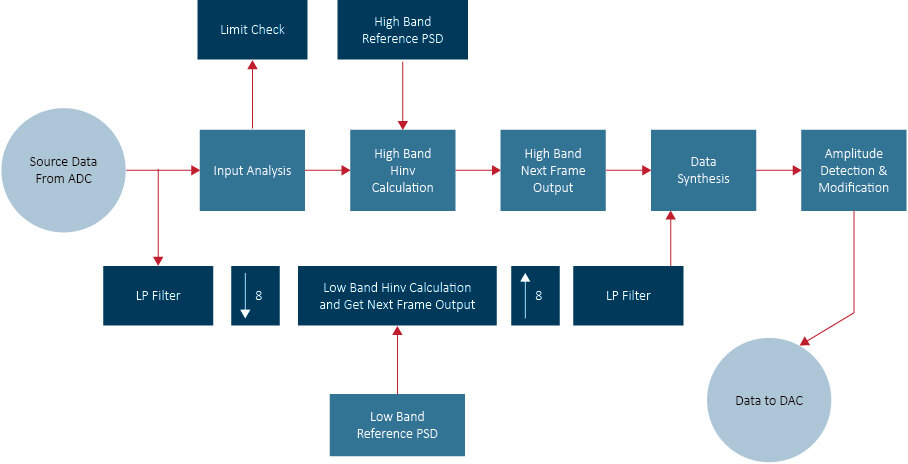

In the implementation, two different control loops with different sampling rates are used. Suppose that the sampling rate in the control system is Fs, we divide the whole frequency range into two bands: (0, Fs/20] and (Fs/20, Fh). DeltaF is the resolution in frequency band (Fs/20, Fh), then we use DeltaF/8 as the resolution in (0,Fs/20]. Down sampling 8 is used in the algorithm. Fig.2 shows us the multi-resolution control method to be used.

The output peak detection and modification also remain unchanged. In the CalOuput( ) function, we just add data from different bands, and send the result to the following detection and modification model, just as what in the now using system.

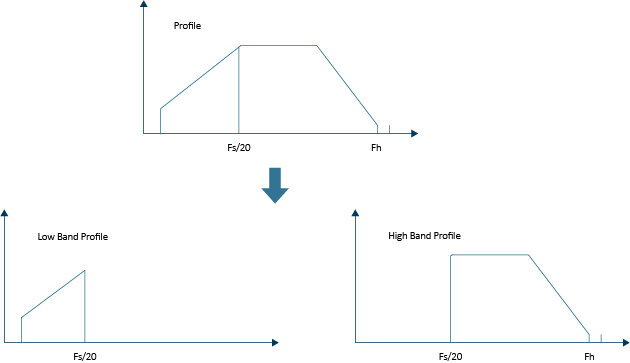

The user defined profile shall be decomposed into 2 bands in the initializing period, to get the low band reference profile. The Spider will operate on these two profiles simultaneously.



TESTING COMPARISON

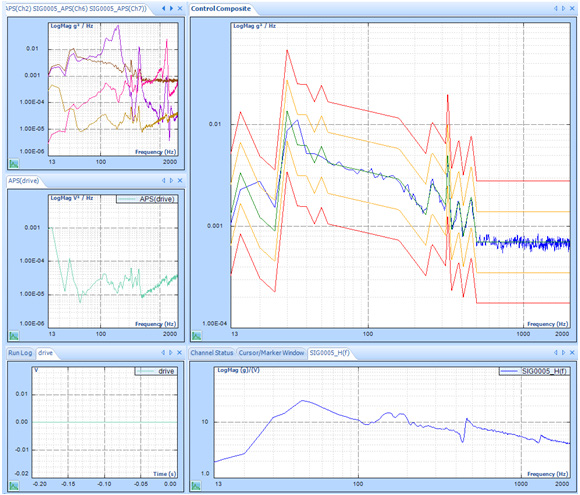

In the composite window below, a test is running without multi-resolution control at 400 lines.

The blue line is the control spectrum. The green line is the profile spectrum. Yellow and red lines are alarm and abort limits.

In this case, a Spider is running a Random test with a profile where there are a few peaks and valleys below 100 Hz and between 200 to 500Hz. We can see that control spectrum matches the profile very well between 200 to 500Hz, but not satisfactory below 100Hz. The reason is described in the first paragraph of this article.

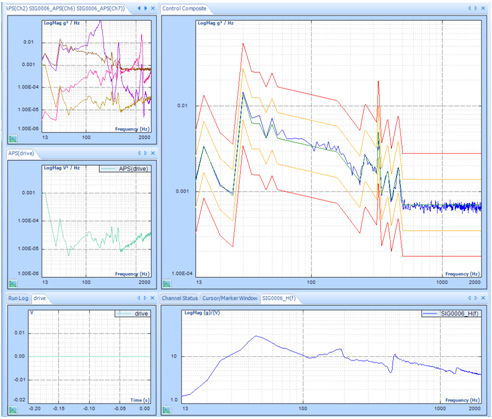

With multi-resolution control enabled, the resolution in the low-frequency range is much higher and the control performance is greatly improved. The control spectrum matches the profile below 100Hz as well as 200 to 500Hz.

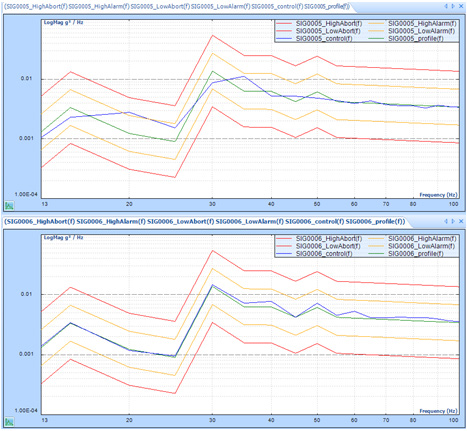

By zooming to 13~100Hz range in the control composite window in both cases.

The top chart shows how control(f) matches profile(f) WITHOUT multi-resolution control.

The bottom chart shows how control(f) matches profile(f) WITH multi-resolution control.

Control(f) matches profile(f) better with the multi-resolution control.

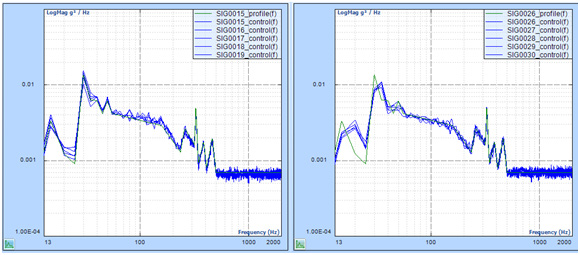

Here are more test results for comparison: (line = 400, Fa = 2000Hz, deltaF = 5Hz)

Signals in the left chart are saved in a Random test WITH multi-resolution.

Signals in the right chart are saved in a Random test WITHOUT multi-resolution.

Both charts show the frequency range of 10Hz to 2000Hz.

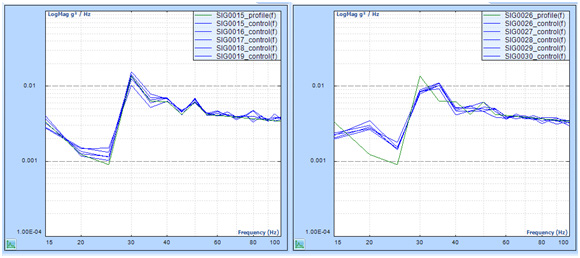

Zoom to 15 to 100Hz range

The following table shows the deviation in decibels between the control(f) and profile(f) (|Control(f)-Profile(f)|) at each FFT bin frequency.

Signal Name: SIG0015 SIG0016 SIG0017 SIG0018 SIG0019
Freq (Hz) profile (f) (dB) | Control (f)-Profile(f) | (dB)
Average | Control (f)-Profile (f) | (dB)
15.0 -24.75 0.82 0.70 0.13 0.43 0.82 0.58
20.0 -29.10 0.77 0.91 0.41 0.10 0.21 0.48
25.0 -30.46 2.21 1.64 1.02 1.08 0.57 1.31
30.0 -18.63 1.25 0.15 0.07 0.41 0.57 0.49
35.0 -22.02 0.82 0.51 0.21 0.19 0.99 0.54
40.0 -22.05 0.05 0.49 0.47 0.52 0.36 0.38
45.0 -23.77 0.58 0.37 0.06 0.30 0.45 0.35
50.0 -22.14 0.10 0.32 0.55 0.46 0.06 0.30
55.0 -23.77 0.14 0.05 0.02 0.09 0.21 0.10
60.0 -23.90 0.62 0.51 0.25 0.02 0.04 0.29
65.0 -24.02 0.09 0.21 0.25 0.59 0.26 0.28
70.0 -24.14 0.15 0.35 0.07 0.00 0.01 0.12
75.0 -24.24 0.39 0.35 0.36 0.22 0.22 0.31
80.0 -24.34 0.46 0.19 1.11 1.08 0.34 0.64
85.0 -24.43 0.38 0.54 0.49 0.11 0.10 0.32
90.0 -24.52 0.14 0.16 0.16 0.11 0.13 0.14
95.0 -24.60 0.06 0.31 0.27 0.94 0.46 0.41
100.0 -24.68 0.26 0.56 0.51 0.29 0.37 0.40
Signal Name: SIG0026 SIG0027 SIG0028 SIG0029 SIG0030
Freq (Hz) profile (f) (dB) | Control (f)-Profile (f) | (dB)
Average | Control (f)-Profile (f) | (dB)
15.0 -24.75 1.72 2.30 2.15 1.82 1.51 1.90
20.0 -29.10 3.44 3.33 3.68 4.50 3.89 3.77
25.0 -30.46 2.98 2.14 2.13 2.32 1.97 2.31
30.0 -18.63 1.86 2.03 2.14 2.39 2.10 2.10
35.0 -22.02 2.47 1.67 2.12 2.13 2.38 2.16
40.0 -22.05 0.79 1.79 0.93 1.24 1.16 1.18
45.0 -23.77 0.81 0.50 1.14 0.39 1.09 0.78
50.0 -22.14 0.91 1.22 1.24 0.63 0.04 0.81
55.0 -23.77 0.66 0.77 0.37 0.79 0.38 0.59
60.0 -23.90 0.53 0.14 0.37 0.21 0.37 0.32
65.0 -24.02 0.33 0.32 0.12 0.08 0.01 0.17
70.0 -24.14 0.08 0.02 0.24 0.06 0.17 0.12
75.0 -24.24 0.24 0.08 0.07 0.30 0.11 0.16
80.0 -24.34 0.13 0.65 0.31 0.02 0.05 0.23
85.0 -24.43 0.27 0.15 0.05 0.09 0.26 0.17
90.0 -24.52 0.32 0.04 0.21 0.12 0.54 0.25
95.0 -24.60 0.06 0.30 0.14 0.01 0.27 0.16
100.0 -24.68 0.21 0.12 0.05 0.15 0.63 0.23

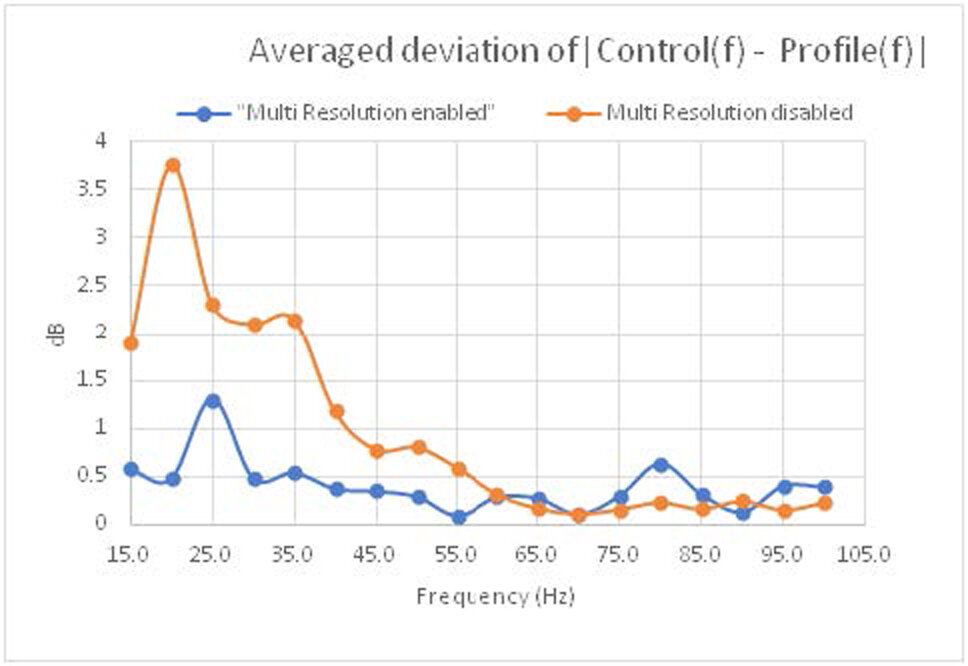

Plot averaged difference of 5 signals at each frequency in both cases.

Conclusion: the difference between control(f) and profile(f) is much more minimized in the low-frequency range with multi-resolution control.
