The Spider-81B Vibration Controller System

(Basic Vibration Test Controller)

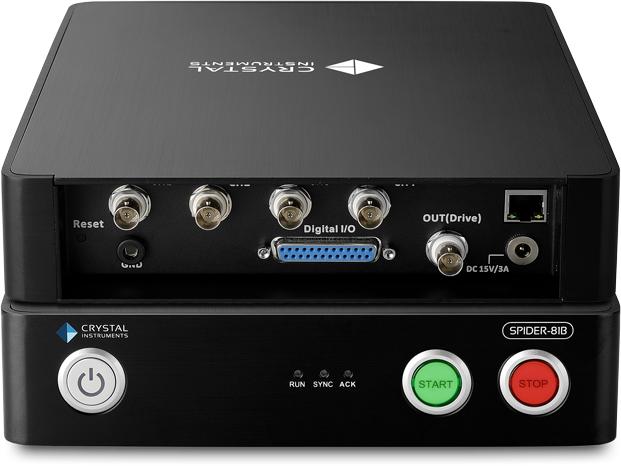

Spider-81B: Low cost, basic vibration control system (stacked view)

Spider-81B: Low cost, basic vibration control system (stacked view)

Basic Vibration Test Controller System

The Spider-81B vibration test controller is developed to meet the requirements of basic vibration testing applications. It has 4 inputs, 1 output, and 4 pairs of digital I/O.

Software Features

The software includes Random, Sine, Shock, and RSTD testing suites.

Black Box Mode: Operate Without a PC

The Spider-81B vibration test controller runs autonomously in Black Box mode without a PC connected. In this mode, a PC is used only to configure the control system before operation and to download data after the test is complete. During the test, the vibration test controller operates according to a preset schedule or from a choice of external devices using the digital I/O interface.

Intuitive User Interface

The vibration control software is further improved at the user interface level. More graphic guidance, wizards, and tools were added to make setup a snap. The interface has been rearranged to make it more logical and more useful. Event-Action rules, Abort-Sensitivity, and other new interface features are used to simplify operation. Searching through a large number of tests is easy with keywords.

Download More Information:

Hardware Platform Spider-81 Spider-81B Spider-80X Spider-80Xi Spider-80M
Application VCS, DSA* VCS, DSA* VCS, DSA, EMA* VCS, DSA, EMA* MIMO VCS, MIMO FRF*
Number of Front-ends Per Chassis 1 1 1 8 7
Number of Inputs Per Front-end 8 4 8 8 8
Max Number of Inputs Per Chassis 8 4 8 64 56
Channel Expansion Via Slave Chassis Yes No Yes Yes Yes
Max Number of Chassis Per System 64 1 64 8 8
Max Number of Front-ends Per System 64 1 64 64 63
Max Number of Inputs Per System 4 1 2 2 8
Number of Outputs Per System 4 1 2 2 8
Input Mode
Charge
TEDS
IEPE
Voltage
Charge
TEDS
IEPE
Voltage
Charge
(optional)
TEDS
IEPE
Voltage
Charge
TEDS
IEPE
Voltage
Strain gage
MEMS
RTD
Thermocouple
Charge
TEDS
IEPE
Voltage
Strain gage
MEMS
RTD
Thermocouple
Digital I/O 8 in/out, isolated 4 in/out, isolated 4 in/out, isolated 4 in/out, isolated 4 in/out, isolated
Front Panel LCD Yes No No Yes Yes
Front Panel Start/Stop button Yes Yes Yes Yes Yes
High Speed Data Port Yes No Yes Yes Yes
Notes Flagship product for
VCS line. Input protection
up to 250V. Equipped with
Stop/Start button.
Economical solution Modular at box level. Modular at board
level. Input Mode
depends on
front-end type.
Modular at board
level. Input Mode
depends on
front-end type.

* VCS = Vibration Control System

* DSA = Dynamic Signal Analyzer

* EMA = Experimental Modal Analysis

* MIMO VCS = Multi-input Multi-output Vibration Control System

* MIMO FRF = Multi-input Multi-output FRF analysis in EMA
