CoCo-80X/90X Handheld Analyzers




The CoCo-80X is a handheld data recorder, dynamic signal analyzer, and vibration data collector. It is ideal for a wide range of industries including machine condition monitoring, automotive, aviation, aerospace, electronics, and military. These industries demand quick, easy, and accurate data recording in addition to real-time processing in the field. The CoCo-80X is a perfect solution as a low cost, lightweight, battery powered handheld system with unparalleled performance and accuracy. The intuitive user interface is specifically designed for easy operation while still providing a wide variety of analysis functions.

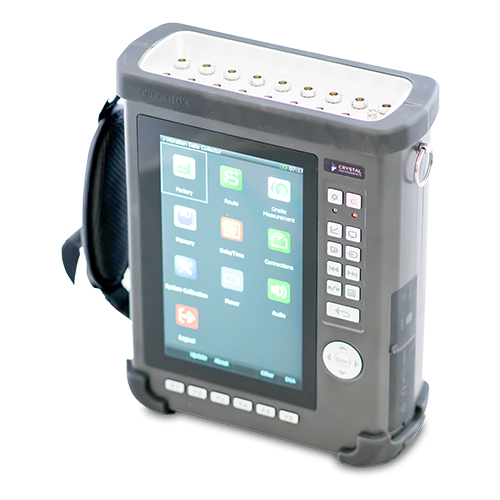

An overview of the handheld CoCo-80X



Building on the success of the original CoCo-80, the new CoCo-80X boasts improved speed, a bigger screen, and more connection options. A significantly more powerful processor frees DSP resources for faster, more reliable, and more complex processing in real time. The 7-inch full color LCD display of the CoCo-80X nearly doubles the screen area of the original unit and offers multi-point touch screen functionality that has become the standard for electronic interfaces. On board Wi-Fi and GPS highlight the portability of the CoCo-80X, and the addition of CAN-bus will make this a very powerful tool for automotive and construction applications.



CAN bus feature allows the subsystems of an automobile to communicate among each other. (Click to play video.)



The CoCo-80X hardware platform supports three different software working modes: Dynamic Signal Analyzer (DSA), Vibration Data Collector (VDC), and CoCo Real-Time mode. Each working mode has its own user interface and navigation structure. DSA mode is designed for mechanical structure analysis, testing and optimization, or for electrical, geophysics, and a wide range of other applications. VDC mode is dedicated to route-based machine condition monitoring, vibration data collection, and trending. CoCo Real-Time mode allows the instrument to operate as a benchtop testing device where commands are executed and data is displayed in real-time on an accompanying PC.



CoCo-80X Tutorial: Overview of CoCo-80X operation in Dynamic Signal Analysis (DSA) mode.



Hardware Features

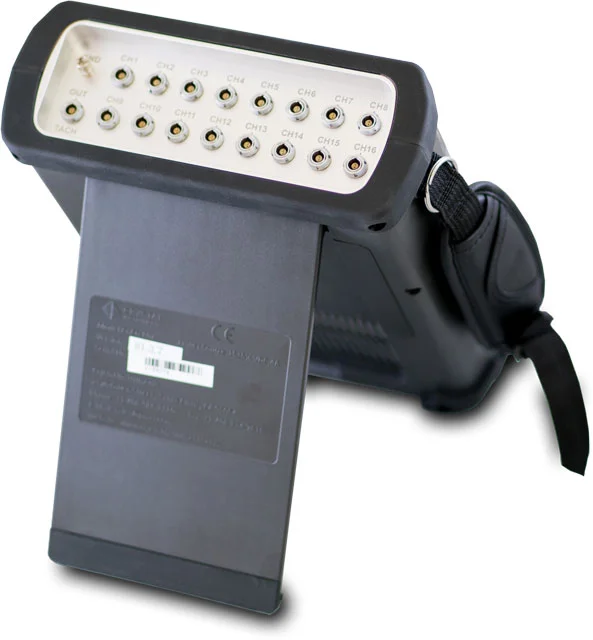

The CoCo-80X is equipped with up to 8 input channels. All hardware will ship with 8 physical BNC connectors, meaning a unit initially purchased as a 2-channel unit can be remotely upgrade to 4, 6, or 8 channels via software.

The CoCo-80X accurately measures and records both dynamic and static signals. The flash storage simultaneously records 8 channels of data at up to 102.4 kHz while performing real-time frequency and time domain calculations. An embedded signal source channel provides several standard waveforms that are synchronized with the input sampling rate.

The handheld system is equipped with a bright 7.0-inch color LCD display with multi-point touch functionality as well as a physical keypad. Flexible connections via a USB 2.0 port, 100Base-T Ethernet port, 802.11 b/g/n Wi-Fi connection, SD card interface, HDMI interface, CAN-bus/serial port, stereo headphone and microphone jack, and GPS. Connect the CoCo-80X to a PC to download files, remotely control operations, or upgrade the software through several means of network connections.

In VDC and Real-Time modes, the CoCo-80X utilizes modern database management technology to synchronize the analysis parameters, route map, and measured data with the analysis PC. Data is downloaded to a PC for managing, trending, and analysis, and is then exported to other applications using EDM software from Crystal Instruments.

Product Specifications:

CoCo-80X CoCo-90X
LCD 7”color TFT WVGA display 800x480 resolution with P-Cap touch screen, 1300 NITS 7”color TFT WVGA display 800x480 resolution with P-Cap touch screen, 1300 NITS
SD Card Storage 128 GB included. Supports up to 256 GB. Removable SD Card. 128 GB included. Supports up to 256 GB. Removable SD Card.
Number of Input Channels: 2, 4, or 8 (configured at factory) 16
Coupling AC, DC, or IEPE (ICP©) AC, DC, or IEPE (ICP©)
Input Type Differential or single-ended single-ended
Input Range: ±20 Vpk >±20 Vpk, ±2 Vpk, ±0.2 Vpk
A/D Resolution 2 x 24-bit per input channel 24-bit per input channel
Sampling Rate 0.48 Hz to 102.4 kHz, with 54 stages 0.48 Hz to 102.4 kHz, with 54 stages
Dynamic Range 150 dBFS (100 Hz to 20 kHz) 130 dBFS (100 Hz to 20 kHz)
Phase Channel Match Less than 0.3 degrees up to 20 kHz Less than 0.3 degrees up to 20 kHz
Full Feature Tachometer yes yes
Number of Outputs 1 1
Output Range ±10 Vpk ±10 Vpk
D/A Resolution 24 bits 24 bits
Digital Filter: high-pass and low-pass digital filters high-pass and low-pass digital filters
GPS Connection yes yes
Grounding Connection yes yes
Hard Keys yes yes
Interface yes yes
